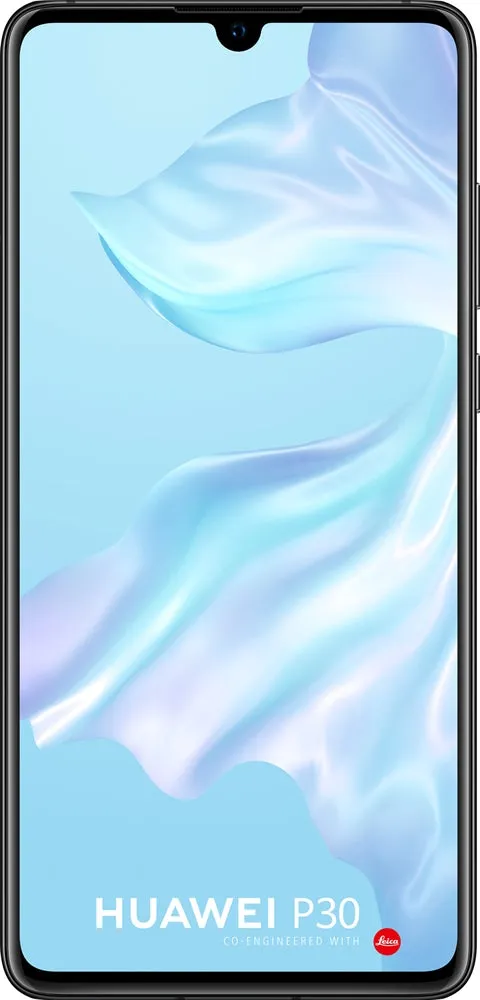

Display

Size:
6.1 inches


Colour:
16.7 million colours

Colour Gamut:
Wide Colour Gamut(DCI-P3)

Type:
OLED

Resolution:
FHD 2340*1080
(Note: The resolution measured as a standard rectangle, with a rounded corners design on the dewdrop display,the effective pixels are slightly less.)

Operating System

Android 9

Memory

6/8 GB RAM 128 GB ROM

Network

ELE-L29:
Primary SIM card:
4G FDD LTE: Bands 1/2/3/4/5/6/7/8/9/12/17/18/19/20/26/28/32
4G TDD LTE: Bands 34/38/39/40
3G WCDMA: Bands 1/2/4/5/6/8/19
3G TDS: Bands 34/39
2G GSM: Bands 2/3/5/8(850/900/1800/1900 MHz)

Secondary SIM card:
4G FDD LTE: Bands 1/2/3/4/5/6/7/8/9/12/17/18/19/20/26/28
4G TDD LTE: Bands 34/38/39/40
3G WCDMA: Bands 1/2/4/5/6/8/19
2G GSM: Bands 2/3/5/8(850/900/1800/1900 MHz)

ELE-L09:
4G FDD LTE: Bands 1/2/3/4/5/6/7/8/9/12/17/18/19/20/ 26/28/32
4G TDD LTE: Bands 34/38/39/40
3G WCDMA: Bands 1/2/5/8/4/6/19
3G TDS: Bands 34/39
2G GSM: Bands 2/3/5/8(850/900/1800/1900 MHz)

*In Dual SIM version, either card slot can be set to accommodate the primary or secondary SIM card.
*Functions available on the live network depend on the situations of carrier's network and related services deployment.

Connectivity

802.11 a/b/g/n/ac (wave2), 2.4 GHz and 5 GHz
Bluetooth 5.0, BLE, SBC, AAC, aptX, aptX HD, LDAC and HWA Audio

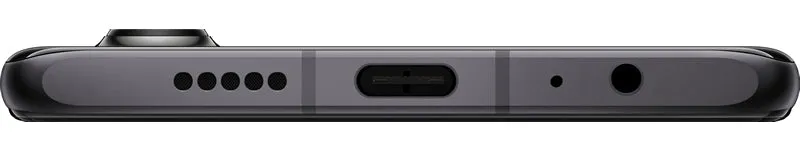

Type-C,USB 3.1 GEN1*
*This function should be used with the USB 3.1 GEN1 cable (non-standard USB cable, need to be purchased separately) that supports this function.
*The standard USB cable supports USB 2.0.

3.5 mm earjack
PC Data Synchronisation

Sensors

Ambient Light Sensor
In-Screen Fingerprint Sensor
Gyroscope
Compass
Proximity Sensor
Gravity Sensor
Hall Sensor
Laser Sensor
Colour Temperature Sensor

Camera

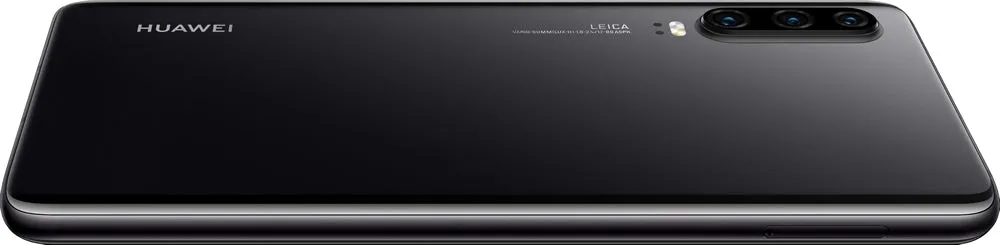

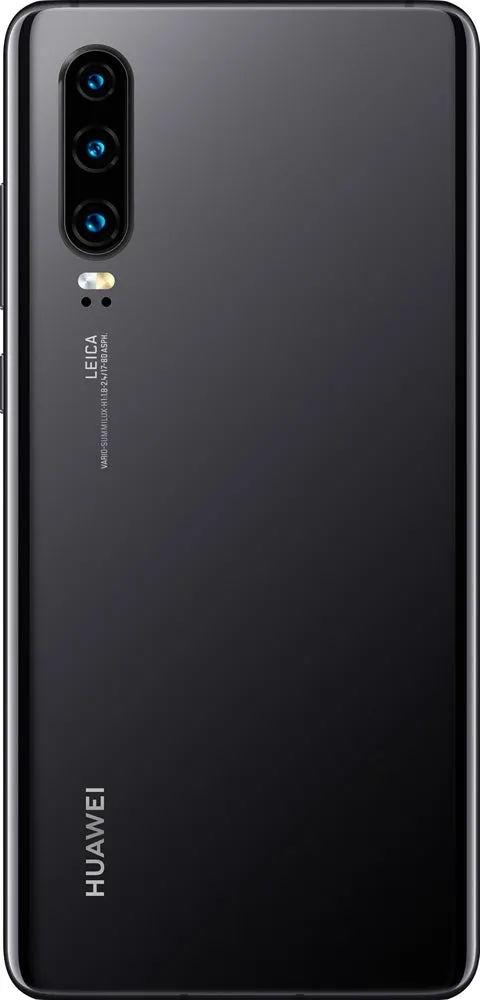

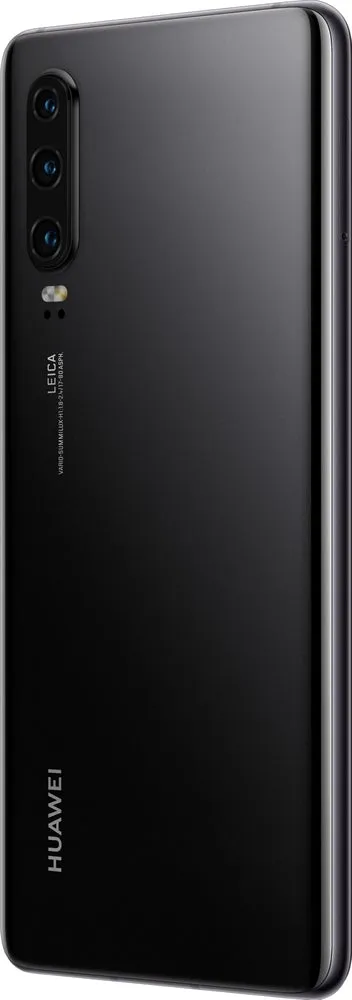

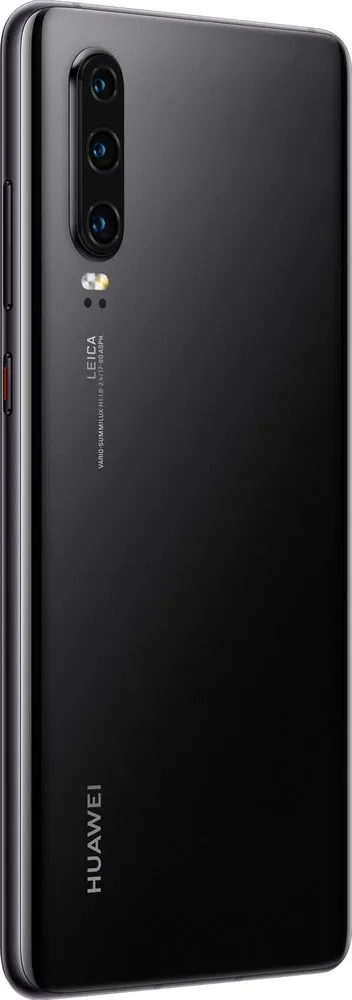

Rear Camera:
Leica Triple Camera:
40 MP (Wide Angle Lens, f/1.8 aperture) 16 MP (Ultra Wide Angle Lens, f/2.2 aperture) 8 MP (Telephoto, f/2.4 aperture,OIS), supports autofocus (laser focus, phase focus, contrast focus), supports AIS (HUAWEI AI Image Stabilization).
Note: In different photo modes, the number of pixels may be slightly different, please refer to the actual situation.

Front Camera:
32 MP, f/2.0 aperture
Note: In different photo modes, the number of pixels may be slightly different, please refer to the actual situation.

*The photo pixels may vary depending on the shooting mode.

Audio

Dolby Atmos (Dolby Digital, Dolby Digital , Dolby AC-4)
mp3, mp4, 3gp, ogg, amr, aac, flac, wav, midi

Video

3gp, mp4

EMUI

EMUI 9.1

Battery

3,650mAh (Typical Value)*

* The Battery Rated Capacity is 3,550mAh.

Processors

HUAWEI Kirin 980 Octa-core Processor
Dual NPUs(Neural-network Processing Unit)
2*Cortex-A76 Based 2.6GHz 2*Cortex-A76 Based 1.92GHz 4*Cortex-A55 1.8GHz

Charging

HUAWEI SuperCharge

Location

GPS (L1 L5 Dual Band) / AGPS / Glonass / BeiDou / Galileo (E1 E5a Dual Band) / QZSS (L1 L5 Dual Band)

NFC

Read Write mode / Peer to Peer mode / Card Emulation mode (payment by *SIM card, or HCE) is supported.

*The SIM card used for SIM card payment can only be inserted into the SIM1 card slot.

Splash, Water, and Dust Resistant

IP53

Tested in a controlled environment and certified to be splash, water, and dust resistant in specific situations (meets requirements of classification IP53 as described by the international standard IEC 60529).
